Vertical Form-Fill-Seal (VFFS) & Bagging Machine

Asking Price

₹25,00,000

Price is negotiable

Description

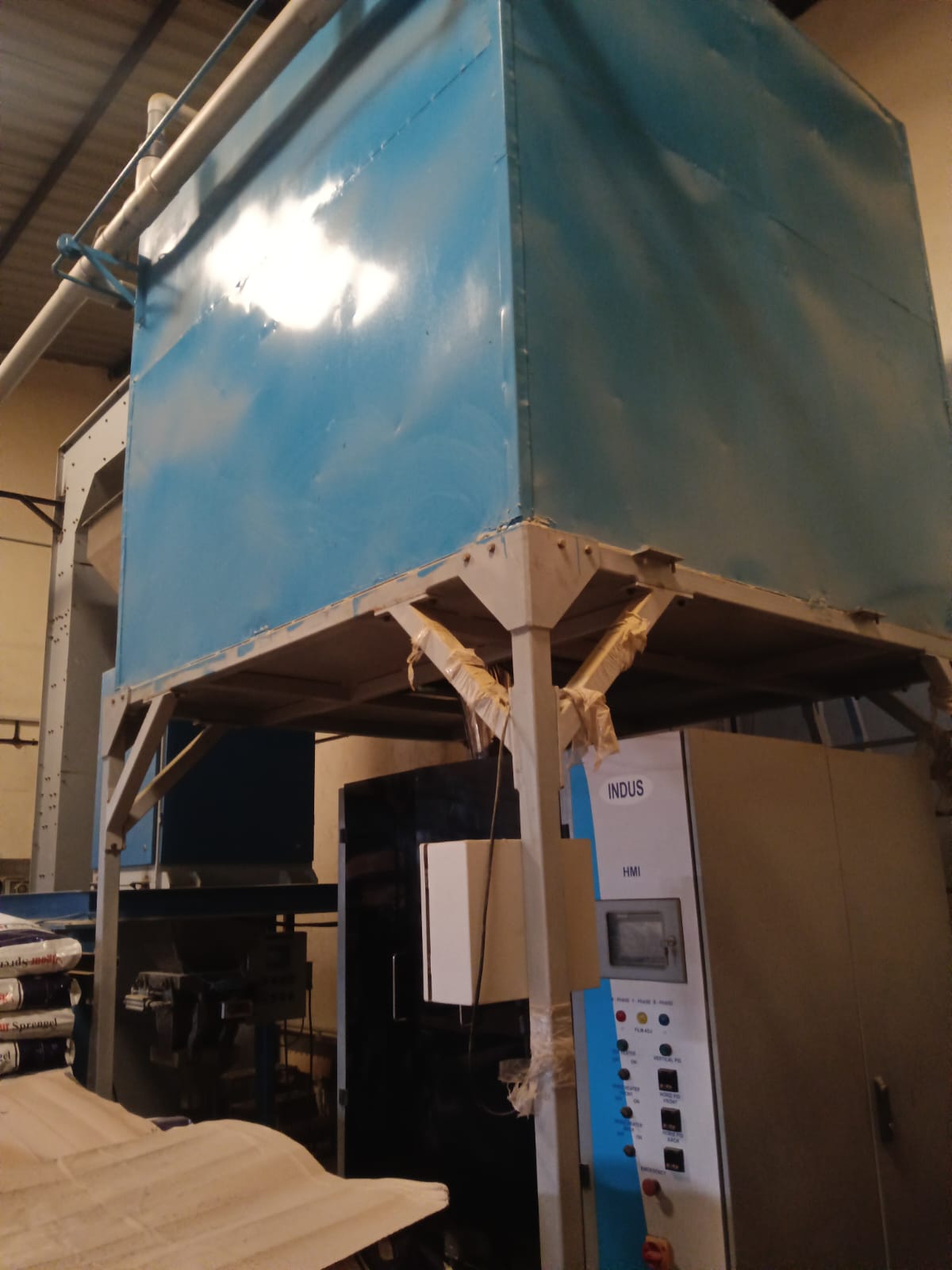

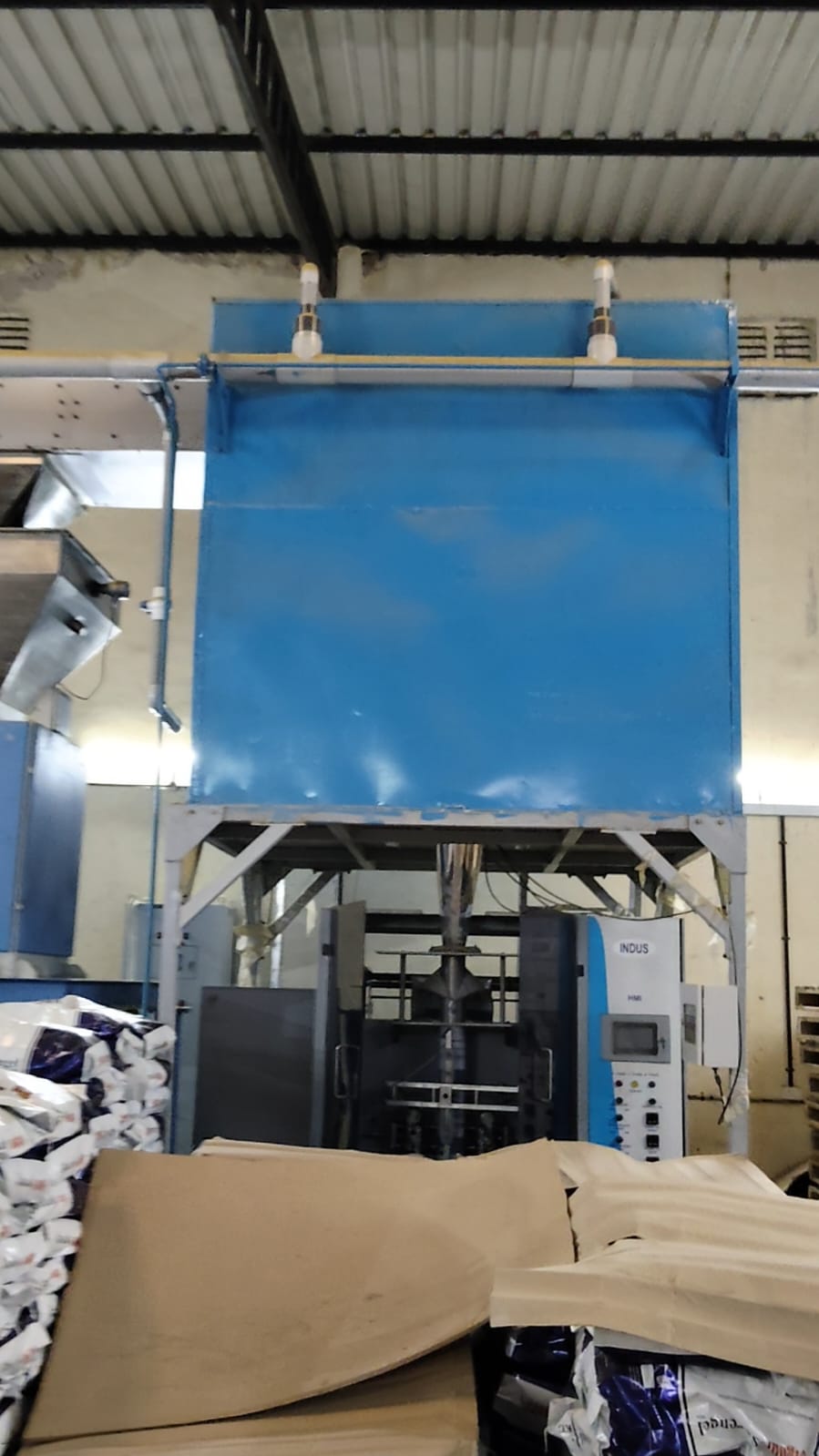

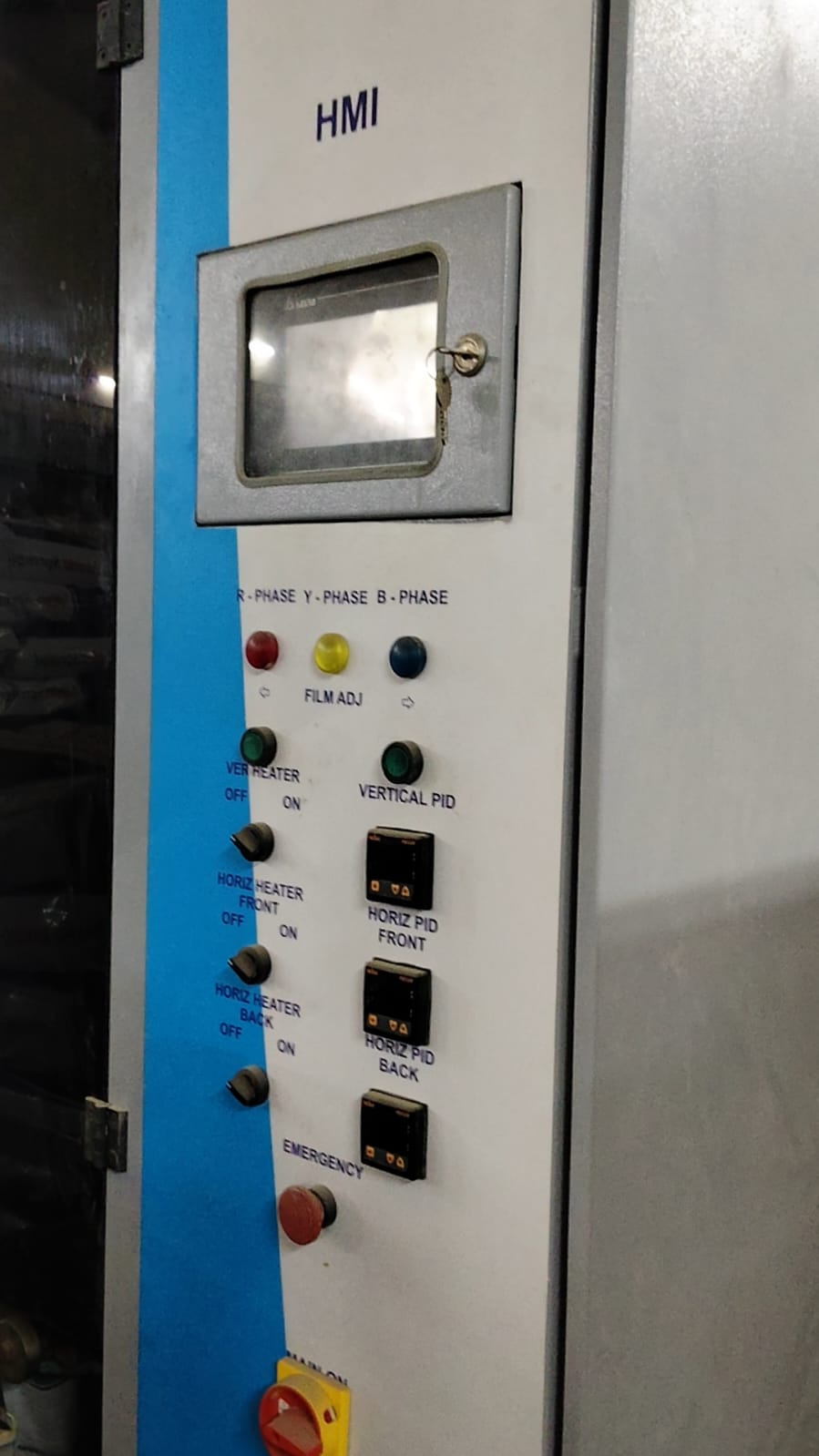

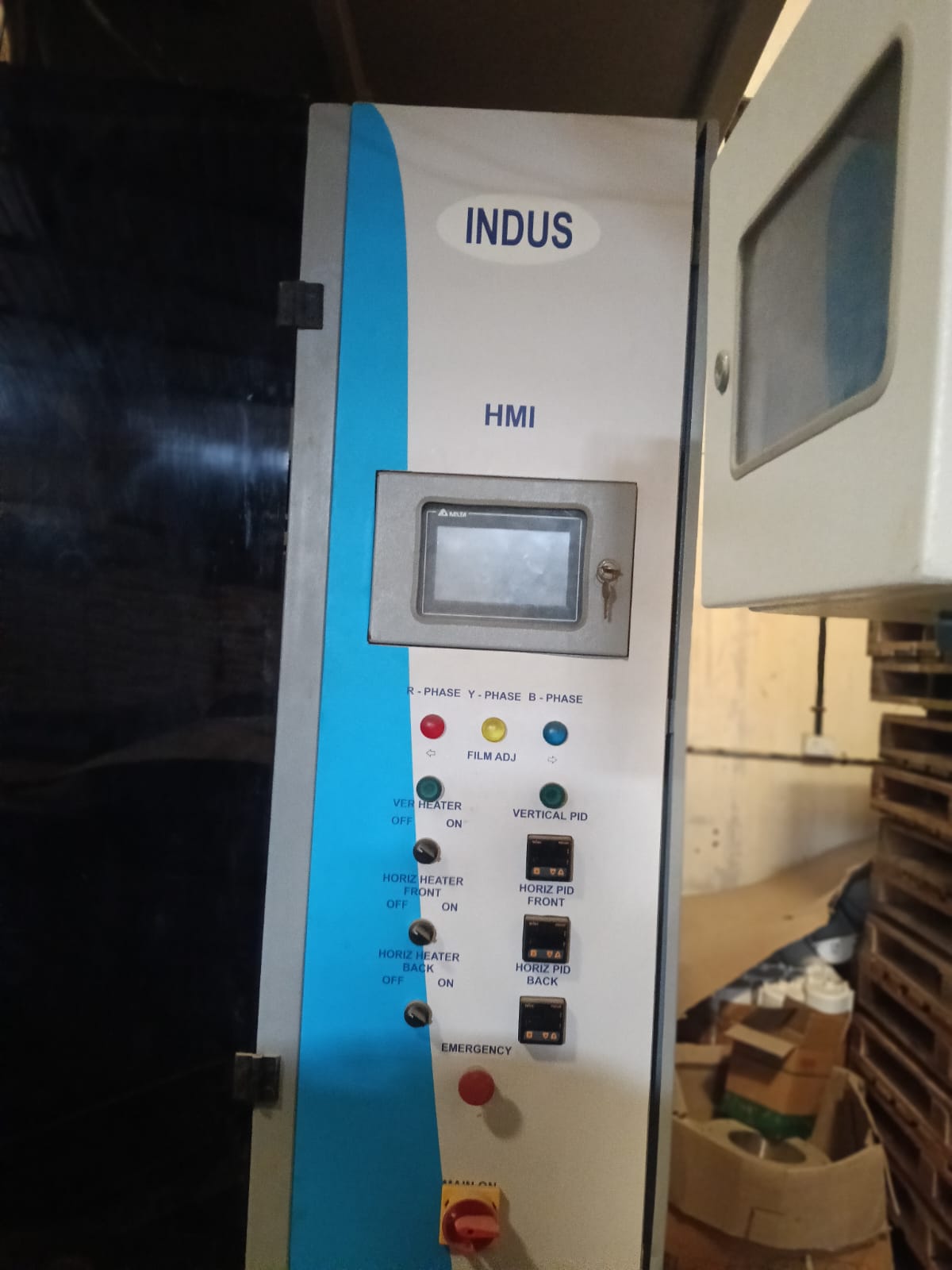

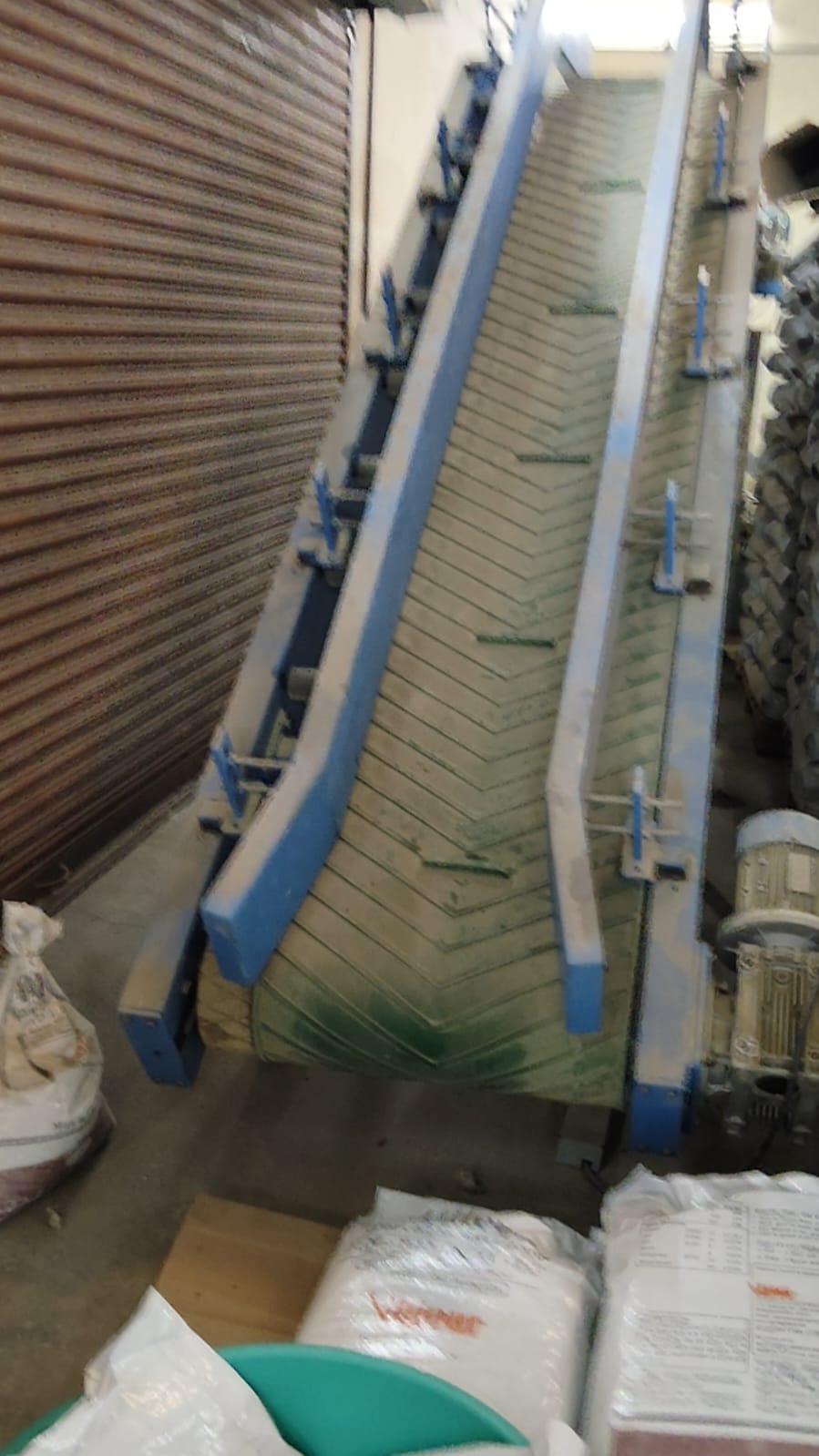

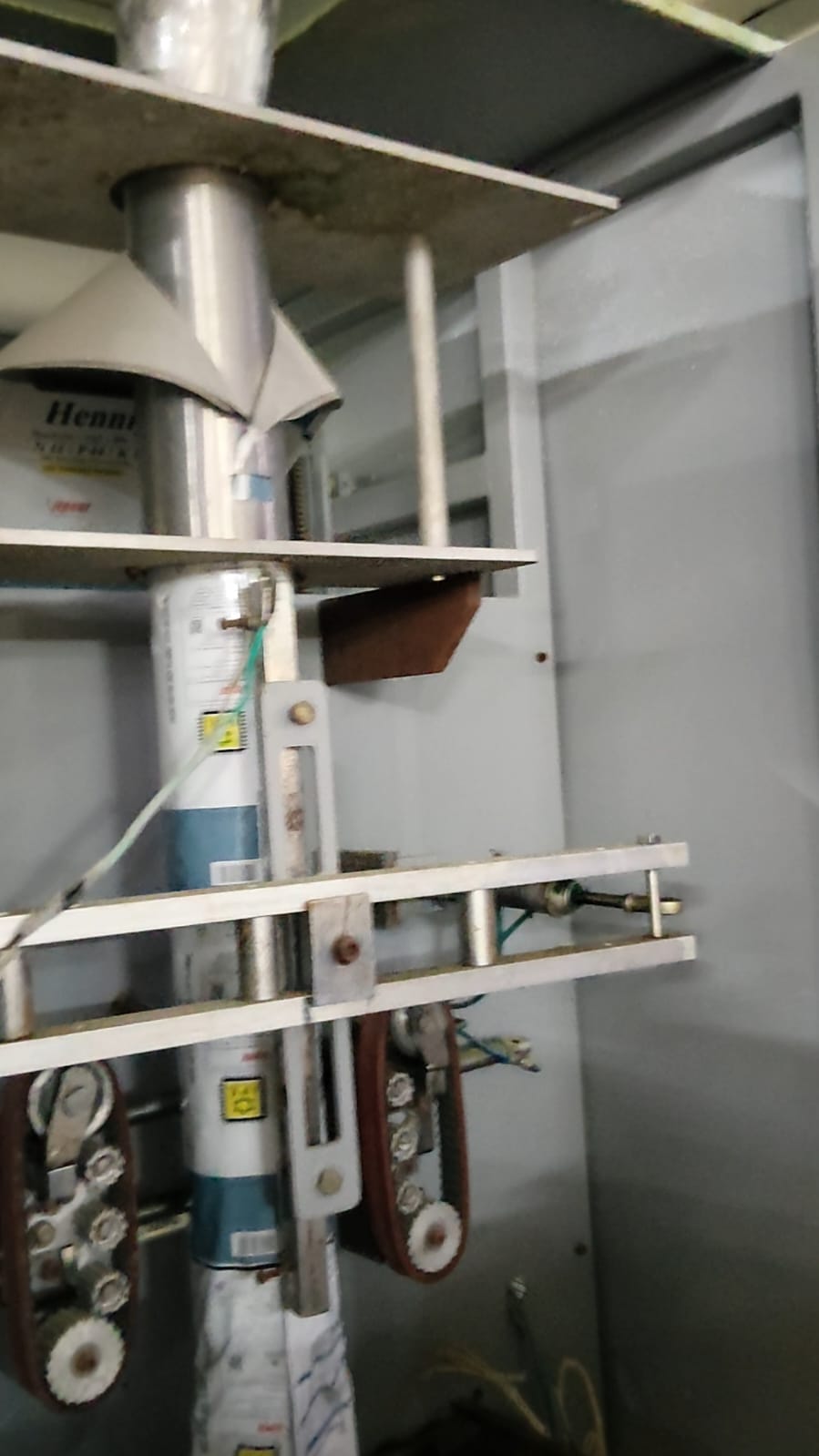

Multi Head Packing Machine • Year of Manufactured - 2024 • Name of Manufacturer - Indus Control & Automation Pvt. Ltd. • Model Name/Series - • Type of Material it can fill, free flow, auger, etc. – Weigh Filler or name of material you use to pack in - Fertilizer • Material of Construction of Contact Parts SS or MS - All contact parts are in SS 304, Non-contact parts mild steel in MS • Filling Range min-max – 500g to 5kg • Filling Speed packs/min at lowest capacity – 1kg - 18 Pouches, 5kg - 6 Pouches • Sealing – Centre or Sides – centre sealing • Film Width – 900 mm • Controller – NC/PLC or Conventional - Pneumatic, PLC Controlled, ALLEN BRADLEY PLC / Schneider • With or Without Air Compressor (HP) - With Air Compressor 5HP • Change parts, spares, accessories if any available with - No Bagging System • Year of Manufactured - 2024 • Name of Manufacturer - Indus Control & Automation Pvt. Ltd. • Model Name/Series if any - • Filling Speed Bags/min at min capacity – 25kg - 6-8 Bags, 50kg – 4 bags • Conveyor Width x Length & its Speed – 3 mtr Bucket elevator or z type conveyor for feeding material into the VFFS machine as per desired height and length : for multi-drop Z Bucket Elevator • Year of Manufactured - 2024 • Material of Construction of Bucket - Plastic • Bucket Width – 600mm • Elevator Max Height – 3825mm • Electric Motor HP – 3HP Specification of other machines – Bag slitter with inclined feed Conveyor & high-speed cutting blades with collecting Hopper with safety enclosure Last usage on – Month & Year - May 2025
