Turret punch press

Asking Price

₹80,00,000

Price is negotiable

Description

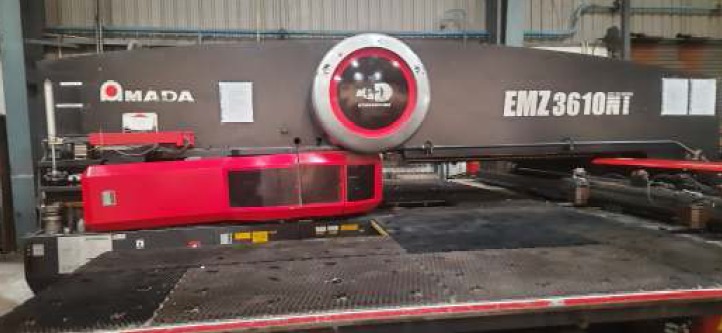

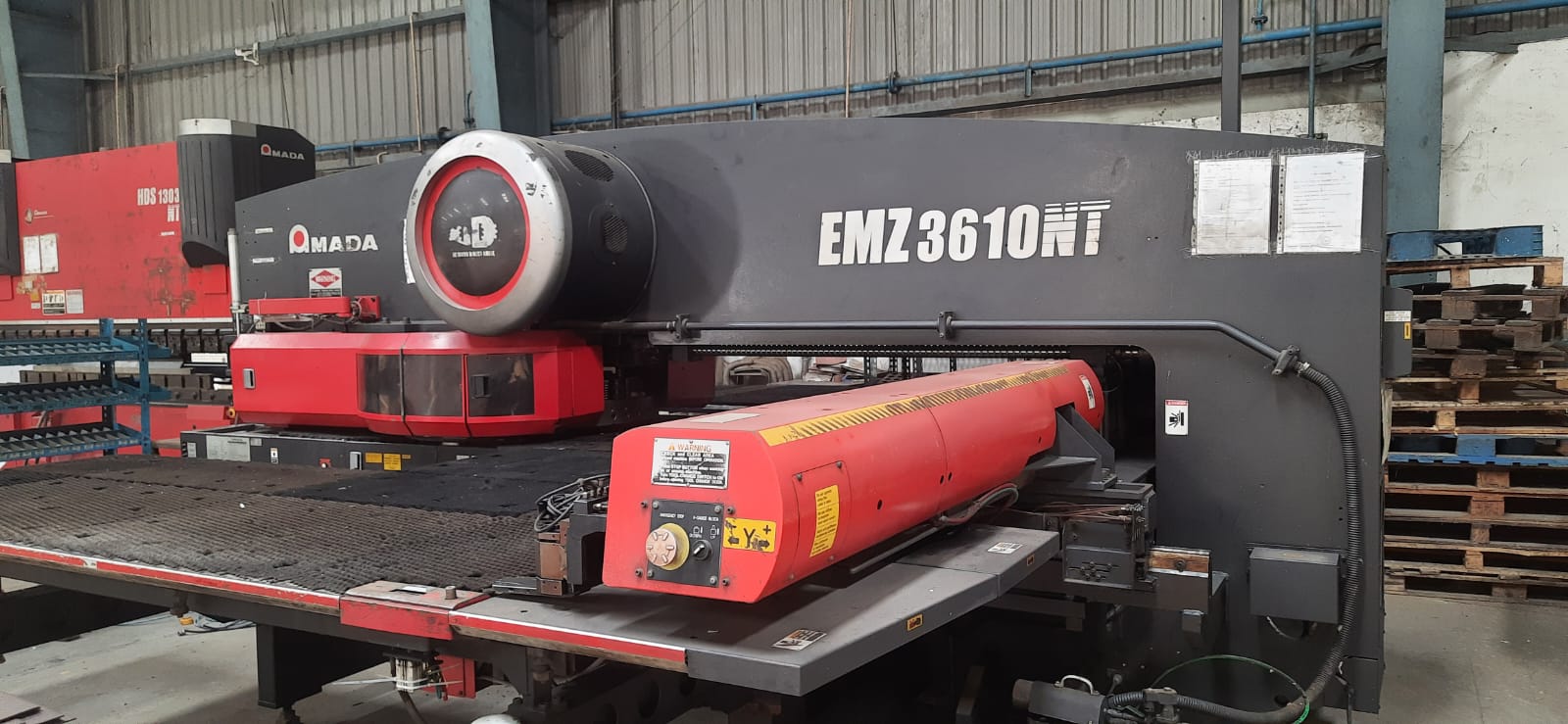

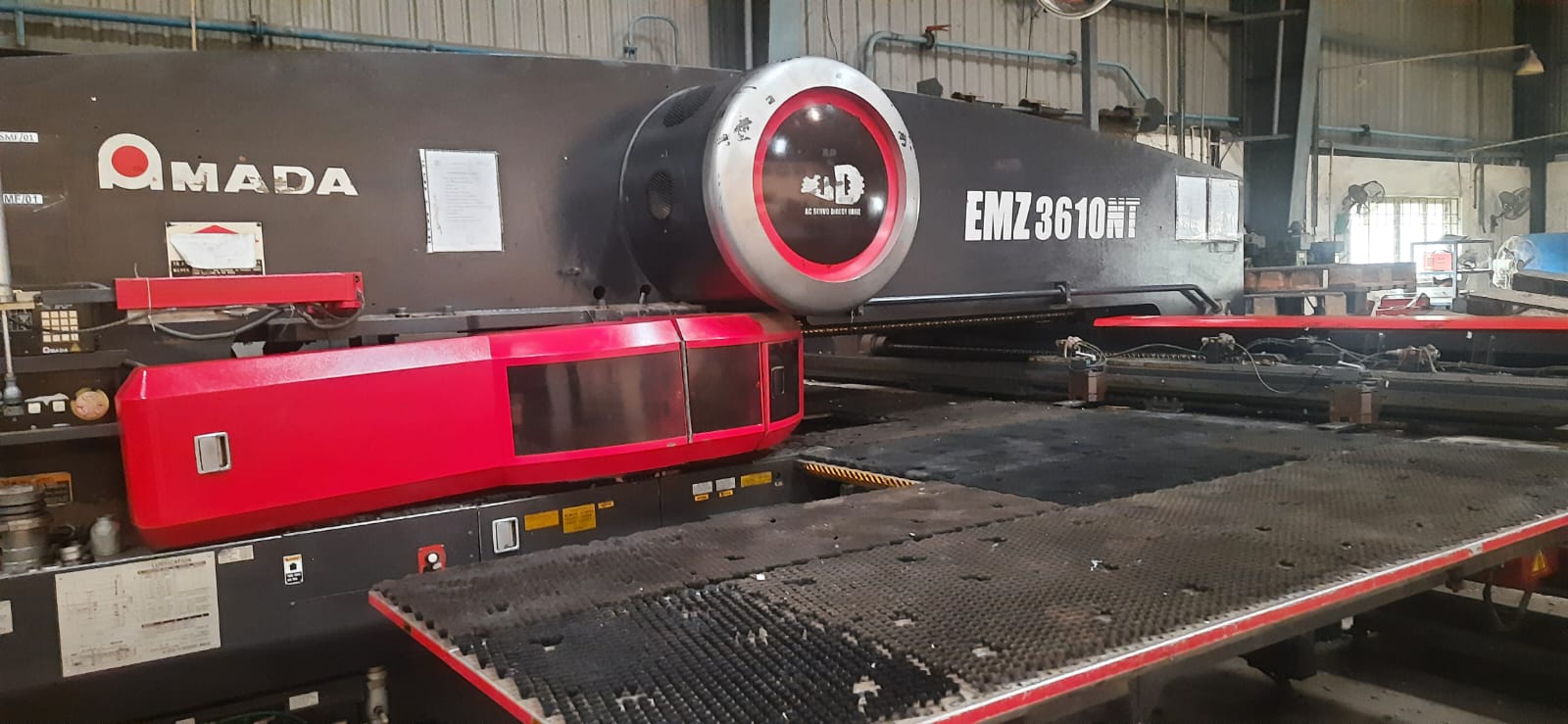

Machine Model : Amada EMZ 3610 Press capacity : 300 KN No.of Turret Stations : 45 Stations No.of Auto Index : 4 Auto Index Max sheet size : 1525× 5000mm Max sheet Thick : 3.2mm Y Axis Travel : 1525mm X Axis Travel : 2500mm Punching Accuracy : 0.1mm Max strokes per minute : 780 SPM Max Press Stroke : 37mm Max X-Axis Speed : 100m/mm Max Y-Axis Speed : 80m/mm Turret Speed : 30 RPM POWER Supply : 27 KVA MC Mass : 24.5 MT Turret Type : Z Type Tapping Station : 8 Stations Country of Origin : Japan
