CRYTALLIZERS

Asking Price

₹2,50,000

Price is negotiable

Description

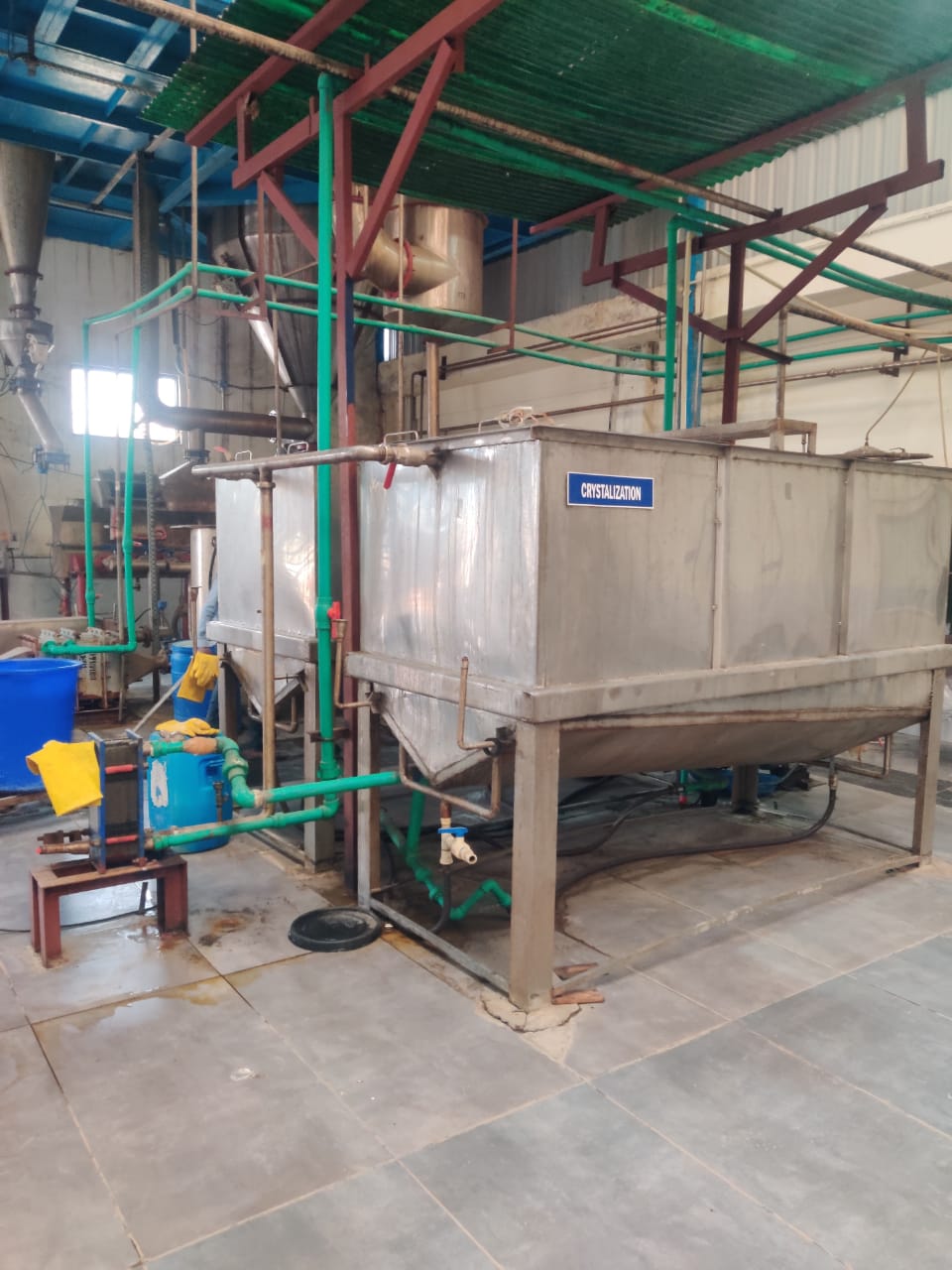

Gross Vol 3000L Type Rectangular Insulated QTY 2 nos Design Code ASME Section VIII Div. BPE 2014 Working pressure Ambient Working Temperature -10 deg. C to Ambient Design Temperature Jacket Design Temperature -15 deg. C to Ambient 2.5 kg/cm2/Full Vacuum -10 to 80 deg. C Material of Construction All Wetted Parts SS-316L Jacket/Non Wet Parts SS -304 Cladding/Leg Support SS-304 Gaskets Ports In Top Plate for Feeding ports 1” Charging port Light Glass Sight Glass In Side Wall for Sampling valve Temperature sensor (RTD) Jacket Inlet and Outlet In Bottom 2" Bottom Flush Valve Harvesting System Type Flush Bottom Valve Chilling system: Plate type Heat Exchanger Inlet Fluid Temperature 60 Deg C Outlet Fluid Temperature 5 Deg C Coolant Inlet Temperature -2 Deg C Flow rate of Fluid 10 LPM Flow rate of Coolant 50 LPM
